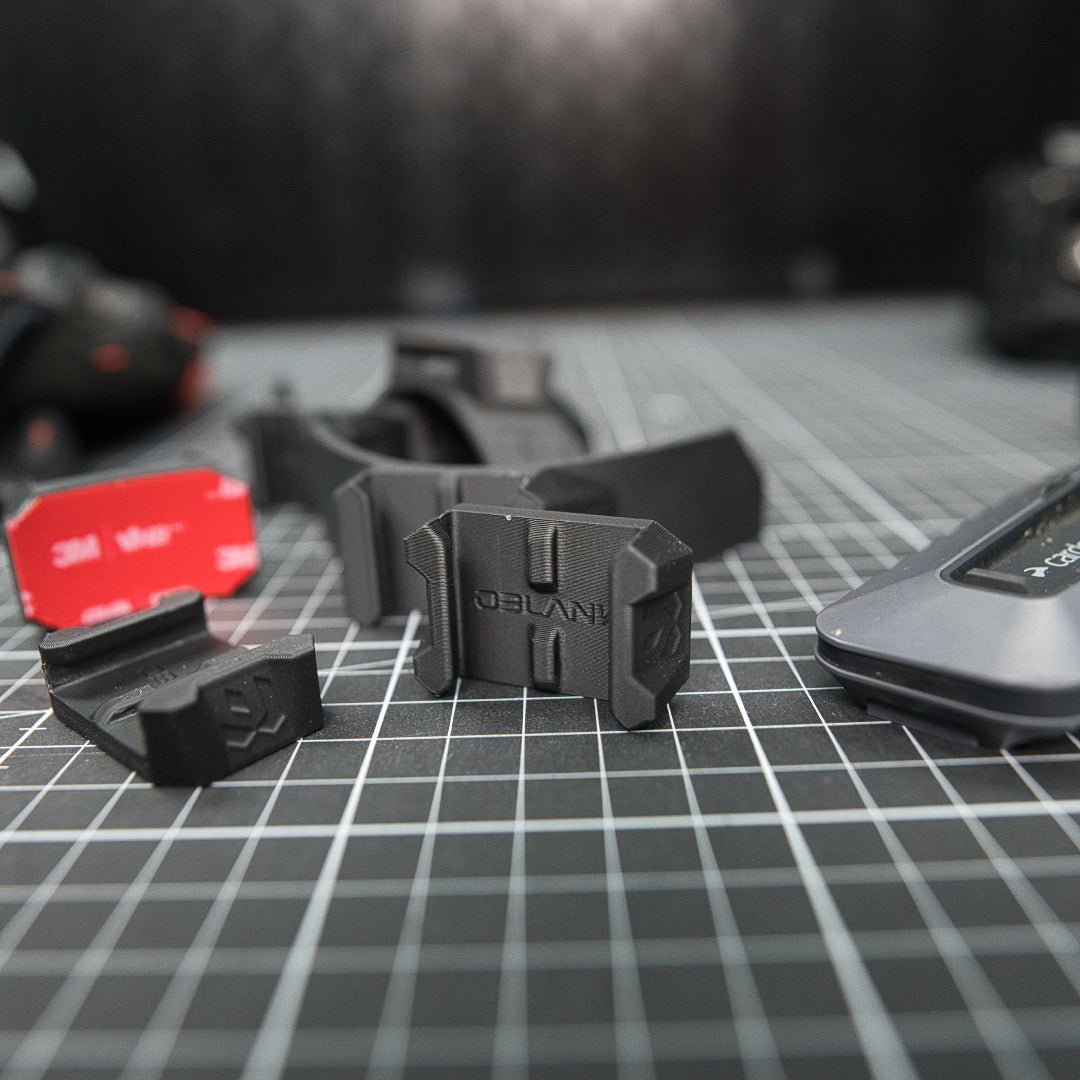

Create a clean and secure action camera setup with a mount designed to adapt to your helmet.

Unlike fixed designs, this digital download includes multiple profile variations to better match different helmet shapes and mounting surfaces. For an even more precise fit, the mount can be heat formed after printing, increasing the contact area for improved adhesion.

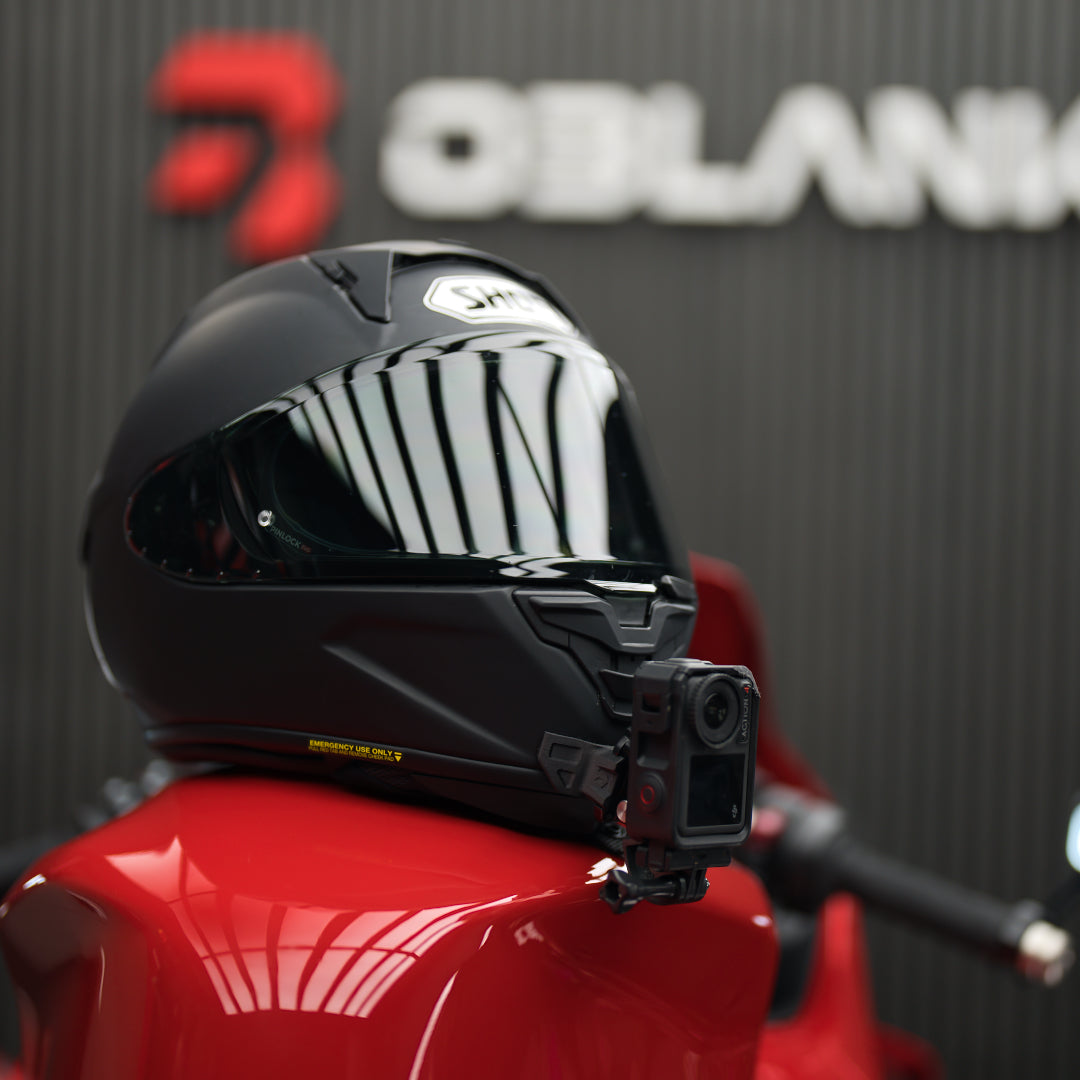

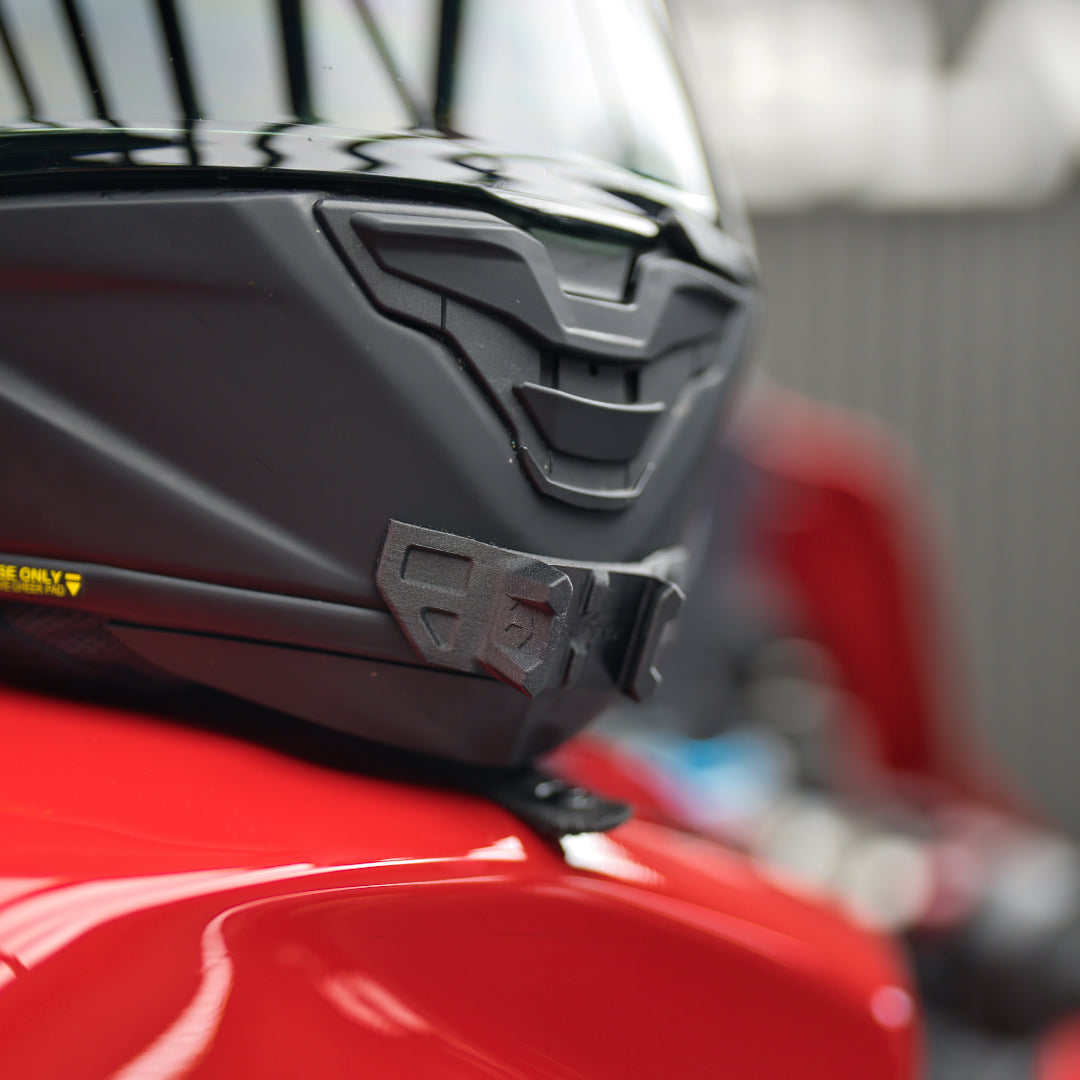

Compatible with the standard GoPro style quick release system, this mount is ideal for motorcycle helmets and many other curved surfaces.

Features

• Digital download.
• Includes both STL and 3MF file formats.

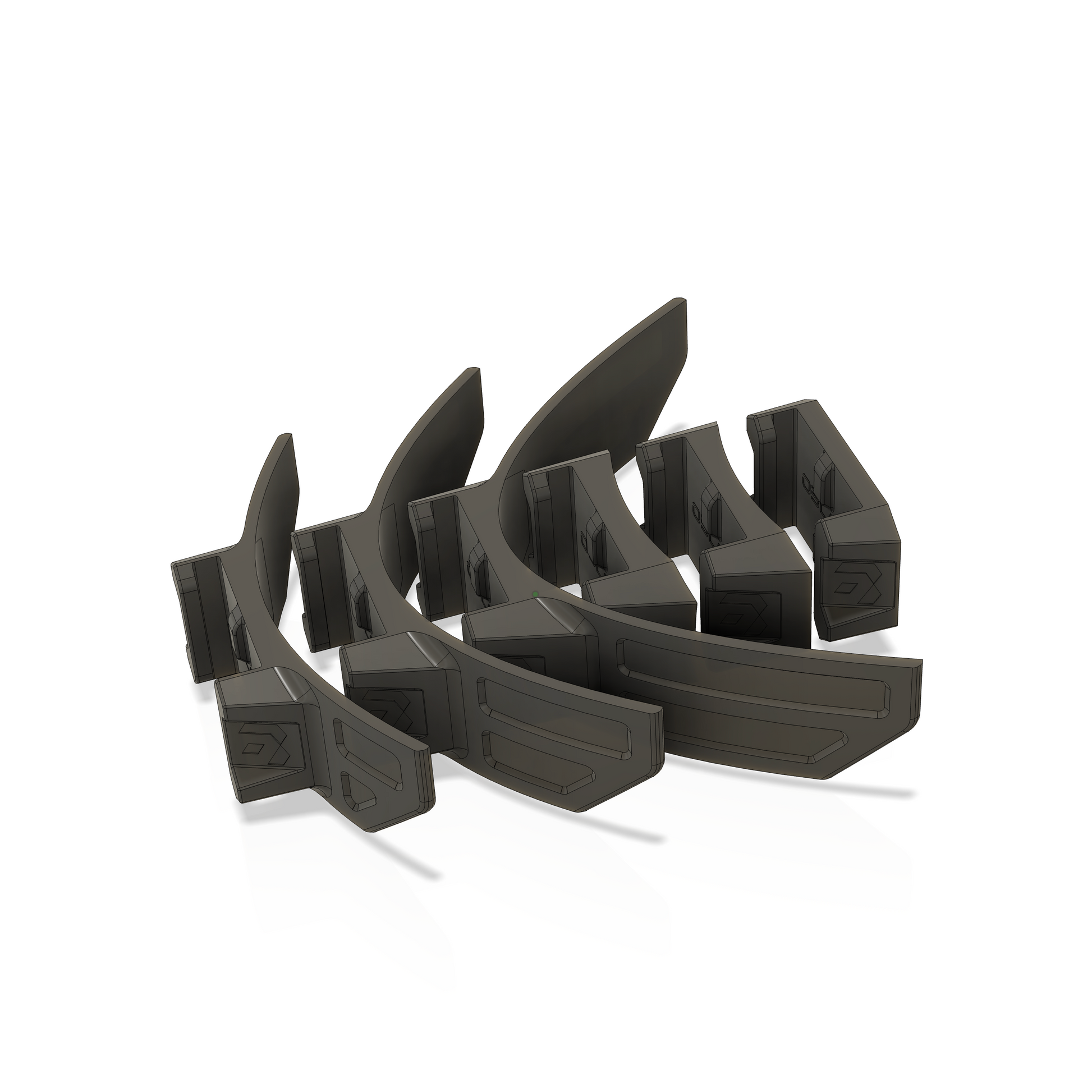

• Multiple profile options for different helmet shapes and surfaces.
• Heat formable for a custom fit.
• Compatible with standard GoPro style quick release mounts.
• Designed for 25 mm 3M VHB adhesive pads.
• Low profile, lightweight design.

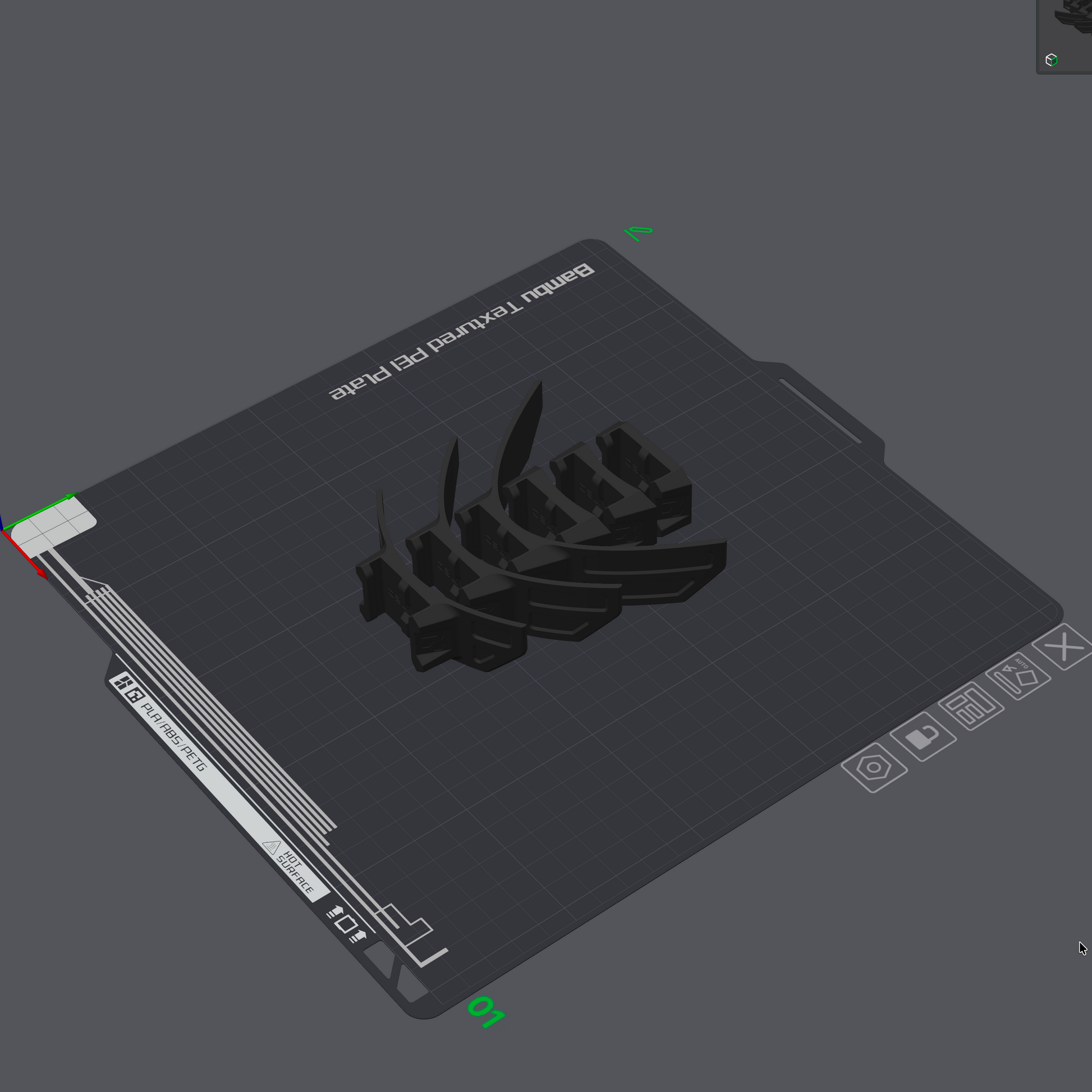

• Optimized for FDM 3D printing.
• Print as many copies as you need for your own personal projects.

Recommended Materials

For the best durability and heat resistance, we recommend:

• PETG
• PETG CF
• ABS
• ABS CF
• ASA
• ASA CF

Tested with Addnorth Rigid X PETG CF.

Use code OBLANK20 for 20% off all Addnorth filament.

Heat Forming

For the best fit, the mount can be heat formed after printing.

Approximate forming temperatures:

• PETG / PETG CF: 75 to 90°C
• ABS / ABS CF: 90 to 105°C
• ASA / ASA CF: 95 to 110°C

Apply heat only to the side wings of the mount. Avoid heating the quick release interface to maintain dimensional accuracy and ensure a secure camera fit.

Heat the wings gradually and carefully shape them to match the mounting surface. Allow the mount to cool completely before applying the adhesive.

The temperatures above are intended as a general guide. Always follow the filament manufacturer’s recommendations, as forming temperatures may vary between brands.

Installation

1. Print the profile that best matches your application.
2. Heat form the side wings if necessary.
3. Clean the mounting surface with isopropyl alcohol.
4. Apply a 25 mm 3M VHB adhesive pad.
5. Firmly press the mount onto the surface.
6. For maximum bond strength, allow the adhesive to cure for at least 24 hours before applying any load or mounting a camera.

License

This product includes a personal use license only.

You may print unlimited copies for your own personal use. Redistribution, resale, sharing, modification for resale, or commercial use of the files or printed parts is not permitted without written permission from OBLANK WORKS.

Important

• This is a digital product. No physical item will be shipped.
• Due to the nature of digital products, all sales are final. No refunds or returns are available after purchase.
• Helmet shapes and mounting surfaces vary. Select the profile that best matches your application. Minor heat forming may be required to achieve the optimal fit.
• OBLANK WORKS is not responsible for damage caused by improper installation, unsuitable adhesives, or incorrect use of the product.
• After purchase the file is delivered to your email. Delivery may take a few minutes. If the email does not appear, please check your spam or junk folder.
